GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering

SHENZHEN GODO INNOVATION TECHNOLOGY CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering from wholesalers

    Buy cheap GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering from wholesalers
    • Buy cheap GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering from wholesalers
    • Buy cheap GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering from wholesalers
    • Buy cheap GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering from wholesalers
    • Buy cheap GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering from wholesalers
    • Buy cheap GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering from wholesalers

    GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering

    Ask Lasest Price
    Model Number : T100
    Brand Name : GODO
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 6 days/set
    Delivery Time : 30+10 days/set (Excluding transportation time)
    • Product Details
    • Company Profile

    GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering

    GODO T100 tethered integrated lighting workstation portable modular high brightness lighting hovering drone


    Product Introduction:

    GODO T100 tethered workstation adopts a 2400 watt high power generator module for continuous power supply, it can hover continuously for 24 hours, and be matched with a 30 meter high-strength tensile cable, can meet the needs of various complex application scenarios. It has high mobility, can be flexibly scheduled, adopts an integrated design for rapid deployment, supports automatic one-button takeoff and landing, which is convenient and fast in practical application.


    GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering


    Specifications:


    Drone


    Wheelbase580mm
    Weight3.5kg
    GPS Hover accuracy_ vertical±0.5 m
    GPS Hover accuracy_ horizontal±1.0 m
    Recommended lighting height30m
    Maximum rising speed2m/s
    Maximum descent speed1m/s
    Maximum takeoff altitude2000m
    Airborne power supplyRated 1.6 kw;peak power 2kw(5s)

    The Box Body


    Size≤720mm*510mm* 380mm
    Weight32. 8kg(Including cables)
    Cable length≥30m cable
    Cable diameter2.8mm
    Flame retardant grade>V0
    PowerRated2000w
    Ingress protectionIP43
    Aviation connectorIndustrial grade aviation connector, complying with CCC standards
    Rated input voltage220VAC/400VDC
    Input maximum current10A

    Modular searchlight set


    Number of searchlights4*6
    Power720w
    Luminous flux108000lm
    Light Efficacy135Lm/W
    色温Colour temperature6500K

    Product Description:

    It contains a lighting module, and the model temporarily does not support the installation of a photoelectric pod.


    GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering


    Applications:

    Widely used in emergency rescue, construction, accident handling, big events, tourist attractions, etc


    Product advantages:

    1),Easy to operate


    2),Box type portable


    3),Quick response


    4),One button takeoff and landing


    5),720W lighting module


    6),Runaway protection


    7),24 hour hovering


    Product maintenance:

    1.When the product is not in use for more than a month, it is necessary to connect 220V power to the power supply box and turn on the emergency stop switch (other switches do not need to be turned on).Power on for 1 hour and charge the emergency power supply inside the chassis.

    2.Regularly check the blades and replace them promptly if there are cracks on the blades.

    3.Drones may generate dust after long-time operation. Please remove dust promptly. The dust removal of the motor should be carried out using high-pressure airflow. Do not use other objects to come into contact with the motor coil to prevent risks caused by short circuits in the motor.

    4.After the drone has taken off and landed more than 100 times, please adjust the tether cable and drone lock position downwards to reduce cable wear.

    5.If the device has not been used for more than a month, please charge the remote control before you use them.


    Software system:

    GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering

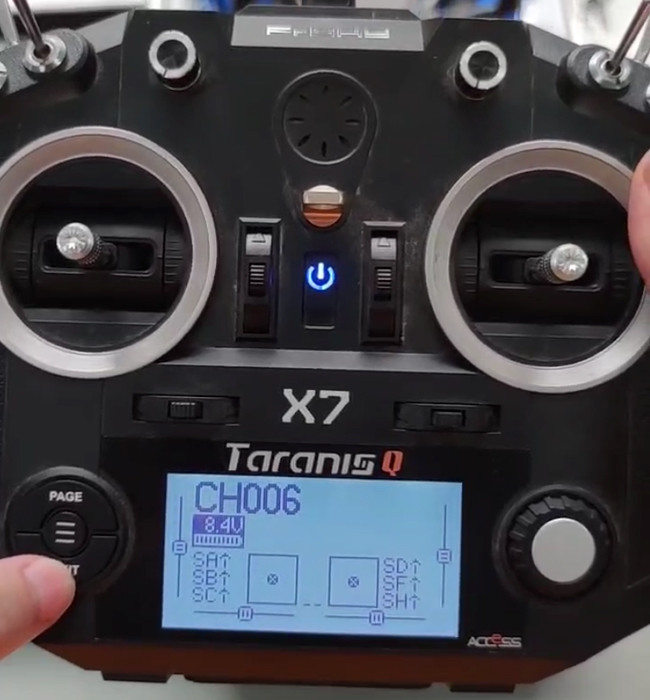

    Equipped with a remote control to ensure the safety and stability of the aircraft, and easy to operate and carry.


    GODO T100 | Integrated UAV In Construction Tethered Drone For Industrial Inspection Aerial Workstation Hovering

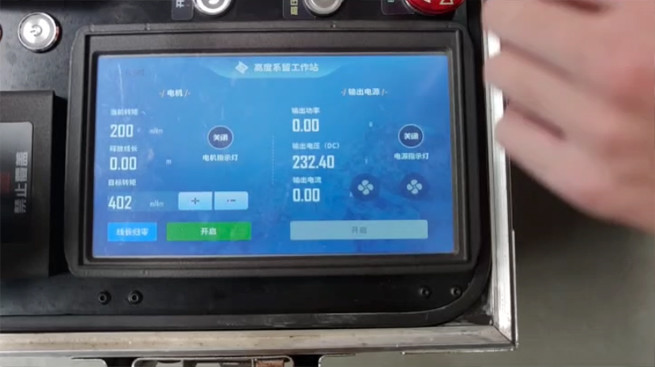

    The power supply box control screen consists of two parts: The left side is the winch control area, including the winch start button, torque adjustment button, line length reset button, and current torque, releasing line length, and target torque display information. The right side is the output power control area, including the power on button, output voltage, output current, and other display information.


    FAQ:

    Q1:What is the minimum quantity I need to order?
    A:At least 1 unit needs to be ordered.


    Q2:How long is the delivery time?
    A:Mass production takes 40 working days.


    Q3:What is the shipping method?
    A:Because our products are heavy equipment, we have chosen sea transportation.


    Q4:What is the process of processing orders?
    A:Firstly, we will form a preliminary order based on your request or our suggested quotation plan,after you confirm the accuracy of the details, we will proceed with the formal order and finally start arranging production.


    Q5:Can I print my logo on the product?
    A:Yes. Please inform us formally before production.


    Q6:Can I get a discount?
    A:Please contact our sales manager.


    TAG:Tethered drone,Aerial Lighting drone,Drone workstation,Individual UAV,UAV operating 24 hours
